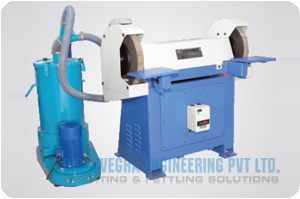

Pedestal Grinders

Pedestal Grinders

Model Unit PG - 12 PG - 16 PG - 18* PG - 20
Grinding Wheel Size mm 300X40X38.10
300X40X50.80*		 400X50X127
400X50X152.40*		 450X50X152.40 500X75X203.20
Wheel CC Dist. mm 950 950 1300 1300
Centre Height from FFL mm 860 860 860 860
Spindle Dia. mm 50 50 70 70
Power of Motor Kw/rpm 3.70/1440 5.5/1440
3.7*/7.5*/1440		 7.5/1440 11/1440
15*/1440
Spindle Speed (Aprox.) rpm 2700 2100 1800 1600
Grinding wheels and Dust Collecting unit extra. The above specifictions are for resinoid bonded wheels.

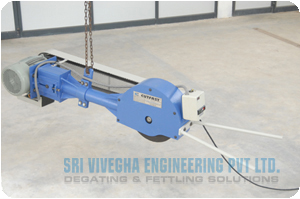

Swing Grinders

Swing Grinders

Model Unit SG - 12 SG - 16 SG - 20
Grinding Wheel Size mm 300X40X38.10 400X50X127 500X75X203.20
Spindle Dia mm 50mm 50mm 70mm
Motor Power / Speed Kw/rpm 3.70/1440rpm 5.50/1440rpm 11/1440rpm
Spindle Speed (Aprox.) rpm 2700 2100 1600
Overall Length / Width (Aprox.) mm 2000/450mm 2200/600mm 2300/650mm
Net Weight (Aprox) Kg 180Kg 200Kg 220Kg
Grinding wheels and Dust Collecting unit extra. The above specifictions are for resinoid bonded wheels.

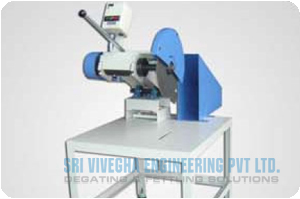

Abrasive Cutoff Machines

Abrasive Cutoff Machines

Model Unit CG - 12 CG - 14 CG - 16
Size of Cut-off Wheel mm 300X3X25.4 350X3X25.40 400X3X25.4
Motor Power / Speed Kw/rpm 2.20/2880 3.70/2880 5.50/2880
Cutting Capacity - Solids mm Max.Dia 32 Max.Dia 40 Max.Dia 50
Cutting Capacity - Sections mm Max. 80X80X10
Cutting Capacity - Pipes mm Max.Dia 100X5 Thickness
Base Size (L XB) - MAX mm 1000X750
Grinding wheels and Dust Collecting unit extra. The above specifictions are for resinoid bonded wheels.
( * - Optinal )
